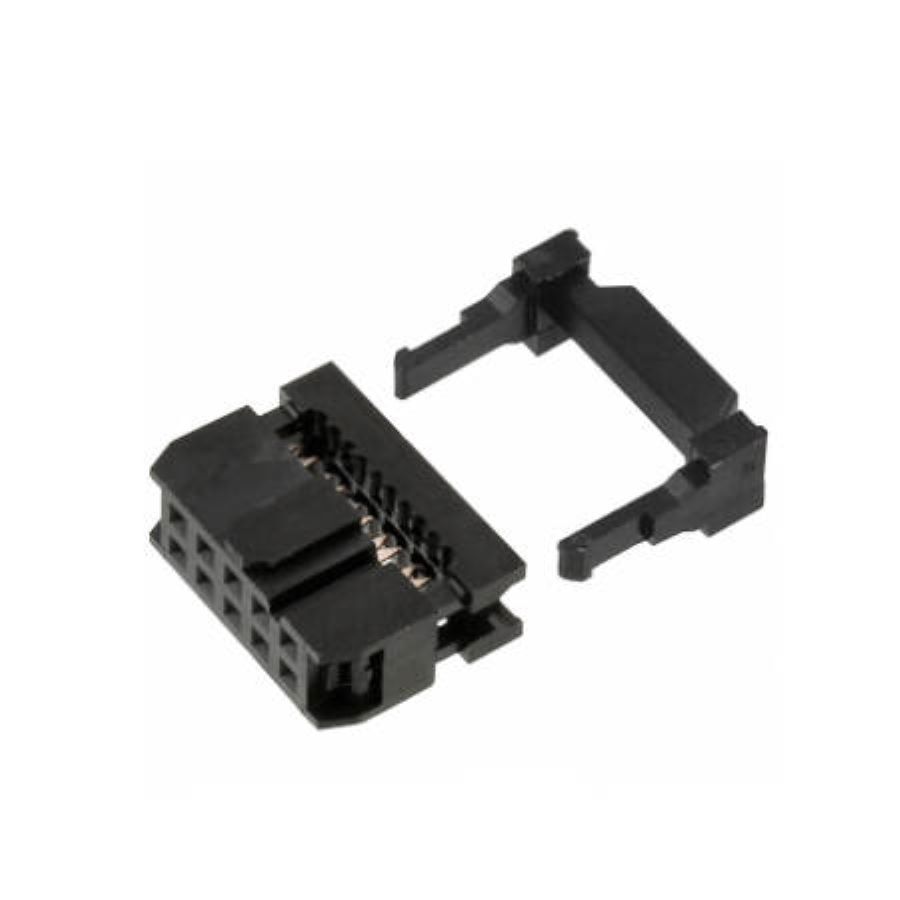

61201023021
Manufacturer:
Wurth Electronics
Mfr.Part #:
61201023021
Datasheet:
Description:
Headers and Wire Housings Through Hole IDC, Receptacle, Socket Number of Positions:10 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Length | 17.38 mm |
| Width | 17.38 mm |
| Termination | IDC |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Height | 8.9 mm |
| Packaging | Tray |
| Voltage Rating | 250 V |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Copper |
| Pitch | 2.54 mm |
| Current Rating | 1 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Color | Black |
| Gender | Receptacle |
| Number of Contacts | 10 |
| Connector Type | IDC, Receptacle, Socket |
| Wire/Cable Gauge | 28 AWG |
| Insulation | Insulated |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | PBT |
| Contact Resistance | 20 mΩ |
| Contact Gender | Female |
Stock: 7150
Distributors
pcbx
pcbxUnit Price$0.26934
Ext.Price$0.26934
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.26934 | $0.26934 |
| 10 | $0.26465 | $2.64650 |
| 25 | $0.25315 | $6.32875 |
| 50 | $0.24215 | $12.10750 |
| 100 | $0.21962 | $21.96200 |
| 300 | $0.21173 | $63.51900 |
| 500 | $0.20413 | $102.06500 |
